Inverter: SIW300H

Combine versatility, efficiency and safety with the SIW300H L1, our Super Premium inverter for residential systems. In addition to having all the internal protections, eliminating the need for a stringbox, these inverters are compatible with batteries, which allows the system to be completely independent of the grid. In addition, they are compatible with power optimizers, which allows you to maximize energy production, even on roofs with multiple slopes. Available in three different powers: 4kW, 5kW and 6kW.

Smart
  • High Efficiency Inverter Topology
Efficient
  • Super light, just 12.3kg
  • Most complete configuration app
  • Complete data history of the life of the device
Full
  • 2 MPPTs / 2 inputs
  • It has all integrated DC and AC protection
  • Integrated WIFI
  • IP65
Security on another level
  • AFCI and Rapid Shutdown

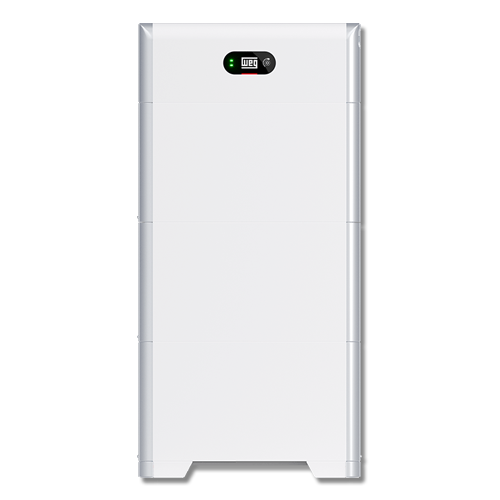

Battery SBW300:

Compatible with the SIW300H Premium Inverter line, the SBW300 battery is designed to deliver energy independence to the consumer. It can store and release electrical energy according to the needs of the inverter management system. With a modular design, the SBW300 Battery can be customized to meet your specific needs.

Super Premium Line
  • Lithium-iron-phosphate (LiFePO4) cell
  • Up to 3 5kWh battery modules
  • Up to 2 battery systems operating in parallel (5-30 kWh)
  • DC High Voltage Solution More than 4,000 cycles
  • 100% DoD

Solar PV Panels WPV-HMM1

WEG modules meet the highest quality standards, being tested and certified in accordance with IEC 61215, IEC 61730, IEC 62716, IEC 61701 and IEC 62804 standards and also receiving the CE seal from the European community, which attests to quality, safety and reliability. Monocrystalline silicon modules. High degree of protection and reliability.

Highlights
  • Powers of 550W and 555W.
  • INMETRO certification ordinance 140/2021.
  • PROCEL seal of efficiency.
  • ISO 9001 and ISO 14001.
Applications
  • Residential systems
  • Trading systems
  • Solar pumping systems
  • Soil plants
  • Tracker plants
Features
  • 1500Vdc systems
  • MULTIBUSBAR technology 21.3% efficiency
  • Withstands 5400Pa load at the front and 2400Pa load at the rear
  • High resistance to PID effect, in accordance with IEC 62804
  • Operating temperature from -40° to 85°C
  • UL790 class II fire protection Dimensions
  • 2278x1134x30mm Anodized aluminum frame
